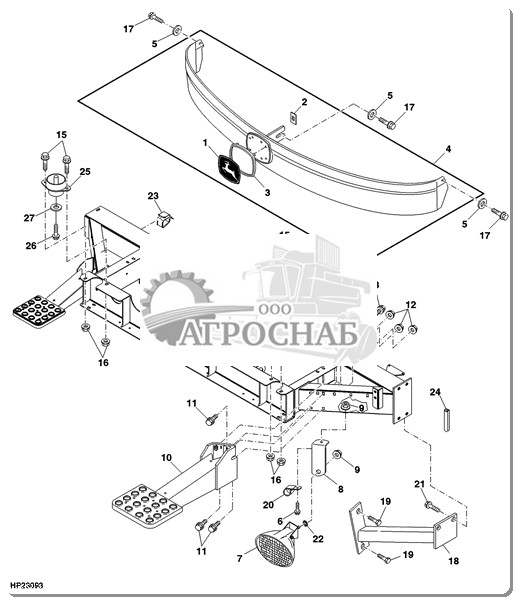

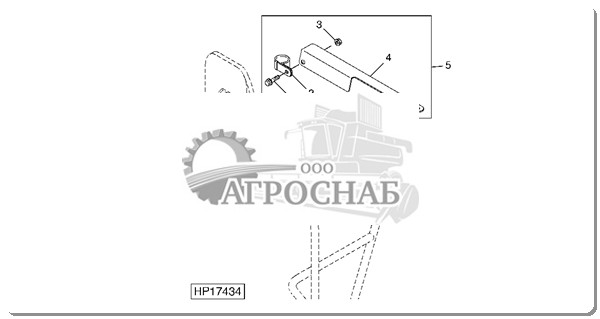

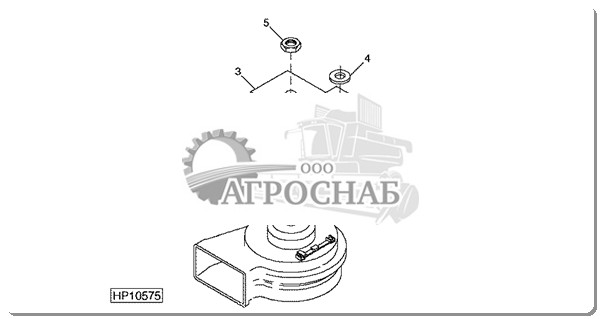

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
---|---|---|---|---|---|---|---|---|---|
1 | H205516 | Label | 1 | X | X | ||||
2 | T81414 | Push Nut | 8 | X | X | ||||
3 | H206265 | Bezel | 1 | X | X | ||||
4 | AH207101 | Shield | 1 | X | X | ||||
5 | 24M7207 | Washer | 3 | X | X | 8.400 X 24 X 2 mm | |||
6 | 19M7865 | Screw | 6 | X | X | M8 X 16 | |||
7 | AH207788 | Floodlamp | 2 | X | X | ||||
AH166909 | Bulb | 2 | X | X | 37.5 W | ||||
8 | H169950 | Bracket | 2 | X | X | ||||
9 | 14M7298 | Flange Nut | 4 | X | X | M8 | |||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
10 | AH130594 | Step | 1 | X | X | ||||
11 | 19M7785 | Screw | 3 | X | X | M10 X 25 | |||
12 | 14M7296 | Flange Nut | 3 | X | X | M10 | |||
13 | 19M7784 | Screw | 1 | X | X | M10 X 20 | |||
14 | AH209089 | Support | 1 | X | X | ||||
15 | 19M7789 | Screw | 4 | X | X | M12 X 30 | |||
16 | 14M7299 | Flange Nut | 4 | X | X | M12 | |||
17 | 37M7058 | Screw | 3 | X | X | M8 X 20 | |||
18 | AH144743 | Support | 1 | - | 705927 | ||||
AH144743 | Support | 1 | - | 705753 | |||||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
AH206863 | Support | 1 | 705928 | - | |||||
AH206863 | Support | 1 | 705754 | - | |||||
19 | 37M7086 | Screw | 2 | X | X | M10 X 20 | |||
20 | AH89557 | Clip | 2 | X | X | ||||
21 | 19M7792 | Screw | 2 | X | X | M16 X 30 | |||
22 | 12H292 | Lock Washer | 1 | X | X | 1/2" SUB FOR H75716 | |||
23 | H172197 | Hose Clamp | 1 | X | X | ||||
24 | ...... | Isolator | 1 | X | X | MF AH122244 | |||
25 | AH108299 | Isolator | 2 | X | X | ||||
26 | 19M7501 | Cap Screw | 2 | X | X | M16 X 110 | |||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
27 | 24M7103 | Washer | 2 | X | X | 17.500 X 56 X 5 mm |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH166260 | Horn | 1 | X | X | ||
2 | 14M7303 | Flange Nut | 1 | X | X | M6 | |
3 | H160476 | Bracket | 1 | X | X | ||
4 | PT2314 | Washer | 1 | X | X | ||
5 | 14M7303 | Flange Nut | 1 | X | X | M6 | |
6 | 24M7139 | Washer | 1 | X | X | 6.400 X 18 X 1.600 mm | |
7 | AH165023 | Ground Cable | 1 | X | X |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
---|---|---|---|---|---|---|---|---|---|
1 | H207540 | Plug | 1 | X | X | ||||
2 | H133391 | Bracket | 1 | X | X | ||||
3 | 37M7089 | Screw | AR | X | X | M6 X 12 | |||
4 | AH141774 | Isolator | 1 | X | X | ||||
5 | 19M7268 | Cap Screw | 2 | X | X | M12 X 25 | |||
6 | H162748 | Screw | 3 | X | X | ||||
7 | H208531 | Plate | 1 | X | X | ||||
8 | AH202350 | Pad | 1 | X | X | ||||
9 | H176481 | Plate | 1 | X | X | ||||
10 | H124260 | Plate | 1 | X | X | ||||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
11A | H133666 | Sheet | 1 | - | 706528 | ||||
H133666 | Sheet | 1 | - | 706341 | |||||
11B | H203253 | Plate | 1 | 706529 | - | ||||
H203253 | Plate | 1 | 706342 | - | |||||
12 | Z74105 | Plate | 1 | X | X | ||||
13 | H141292 | Plate | 1 | X | X | ||||
14 | AH90990 | Clip | 1 | X | X | ||||
15 | 37M7131 | Screw | 6 | X | X | M6 X 20 | |||
16 | AH211164 | Handle | 1 | X | X | ||||
17 | H131574 | Retainer | 1 | X | X | ||||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
18 | 19M7865 | Screw | 2 | X | X | M8 X 16 | |||
19 | AH210706 | Support | 1 | X | X | ||||
20 | AH211594 | Support | 1 | X | X | ||||
21 | H131300 | Grommet | 1 | X | X |

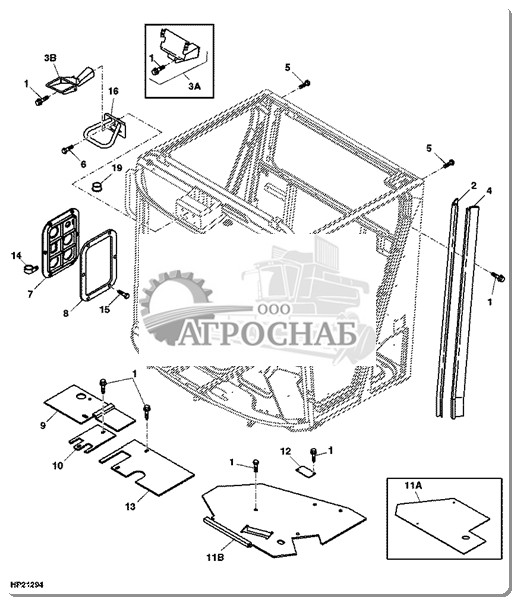

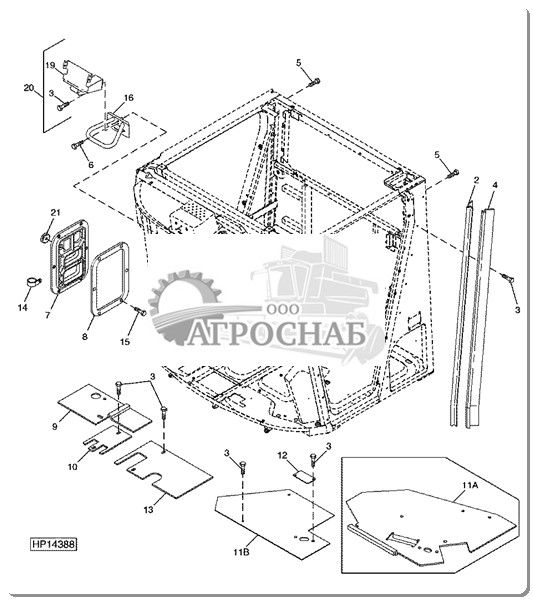

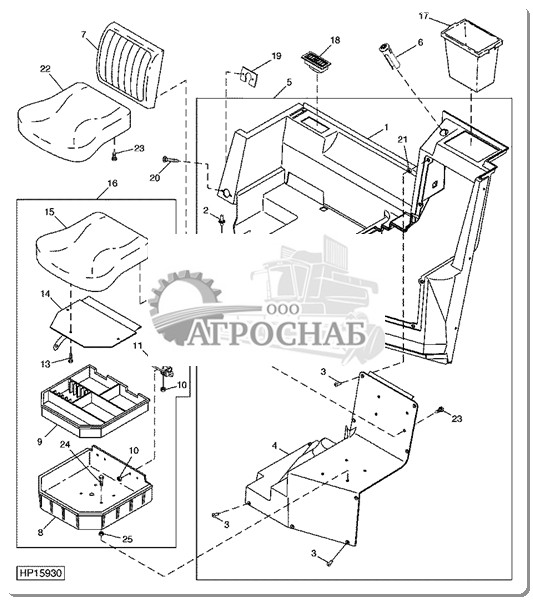

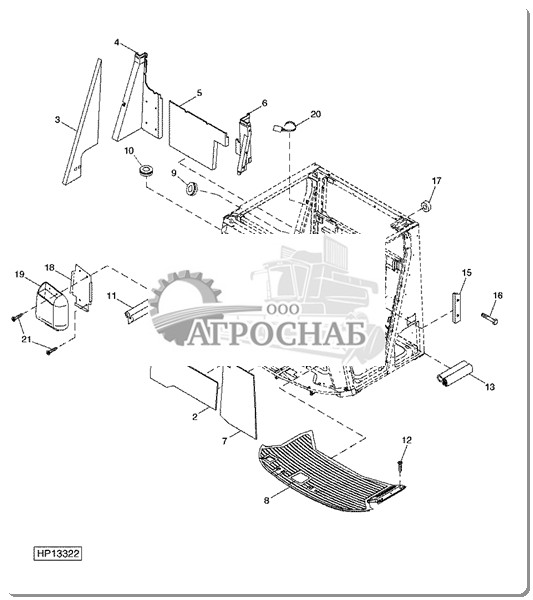

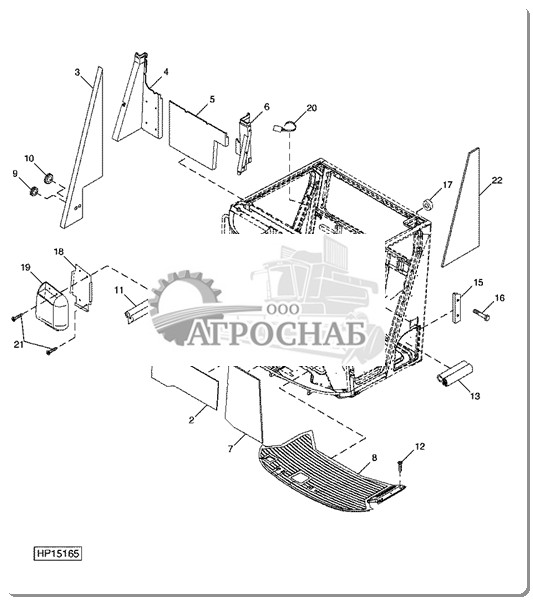

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | 37M7089 | Screw | AR | X | X | M6 X 12 | |
2 | H133391 | Bracket | 1 | X | X | ||
3A | AH211594 | Support | 1 | X | X | SUB FOR AH210706; USE WITH GS RECEIVER | |
3B | AH236126 | Support | 1 | X | X | (USE WITH SF3000 RECEIVER); ORDER PF91009 | |
4 | AH141774 | Isolator | 1 | X | X | ||
5 | 19M7268 | Cap Screw | 2 | X | X | M12 X 25 | |
6 | H162748 | Screw | 3 | X | X | ||
7 | H219801 | Plate | 1 | X | X | ||
8 | AH202350 | Pad | 1 | X | X | ||
9 | H176481 | Plate | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
10 | H124260 | Plate | 1 | X | X | ||
11A | H203253 | Plate | 1 | X | X | (A) | |
11B | H133666 | Sheet | 1 | X | X | (B) | |
12 | Z74105 | Plate | 1 | X | X | ||
13 | H141292 | Plate | 1 | X | X | ||
14 | AH90990 | Clip | 1 | X | X | ||
15 | 37M7131 | Screw | 6 | X | X | M6 X 20 | |
16 | AH217340 | Handle | 1 | X | X | ||
17 | H131574 | Retainer | 1 | X | X | ||
18 | 19M7865 | Screw | 2 | X | X | M8 X 16 | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
19 | E92139 | Plug | 1 | X | X |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH155929 | Bracket | 1 | X | X | ||
2 | AH159716 | Barrier | 1 | X | X | RH | |
3 | H125511 | Pad | 1 | X | X | RH | |
AH127674 | Barrier | 1 | X | X | LH | ||
4 | AH207959 | Panel | 1 | X | X | ||
5 | AH207956 | Panel | 1 | X | X | ||
6 | AH207954 | Panel | 1 | X | X | ||
7 | AH159715 | Barrier | 1 | X | X | LH | |
8 | AH227176 | Mat | 1 | X | X | (SUB FOR AH172989) | |
9 | R50456 | Grommet | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
10 | R50636 | Grommet | 1 | X | X | ||
11 | AH106010 | Weatherstrip | 1 | X | X | ||
12 | 37M7160 | Screw | 3 | X | X | M6 X 16 | |
13 | AH209861 | Isolator | 1 | X | X | ||
14 | 37M7089 | Screw | 4 | X | X | M6 X 12 | |
15 | H124210 | Cover | 1 | X | X | ||
16 | H132451 | Cap Screw | 2 | X | X | ||
17 | H987R | Grommet | 1 | X | X | ||
18 | H165215 | Panel | 1 | X | X | ||
19 | H161126 | Container | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
20 | H138297 | Tie Band | 1 | X | X | ||
21 | H165249 | Screw | 4 | X | X |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH155929 | Bracket | 1 | X | X | ||
2 | AH159716 | Barrier | 1 | X | X | ||
3 | H125511 | Pad | 1 | X | X | ||
4 | AH207959 | Panel | 1 | X | X | ||
5 | AH207956 | Panel | 1 | X | X | ||
6 | AH207954 | Panel | 1 | X | X | ||
7 | AH159715 | Barrier | 1 | X | X | ||
8 | AH227176 | Mat | 1 | X | X | (SUB FOR AH172989) | |
9 | R50456 | Grommet | 1 | X | X | ||
10 | R50636 | Grommet | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | AH106010 | Weatherstrip | 1 | X | X | ||
12 | 37M7160 | Screw | 3 | X | X | M6 X 16 | |
13 | AH209861 | Isolator | 1 | X | X | ||
14 | 37M7089 | Screw | 4 | X | X | M6 X 12 | |
15 | H124210 | Cover | 1 | X | X | ||
16 | H132451 | Cap Screw | 2 | X | X | ||
17 | H987R | Grommet | 1 | X | X | ||
18 | H165215 | Panel | 1 | X | X | ||
19 | H161126 | Container | 1 | X | X | ||
20 | H138297 | Tie Band | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
21 | H165249 | Screw | 4 | X | X | ||
22 | AH127674 | Barrier | 1 | X | X |

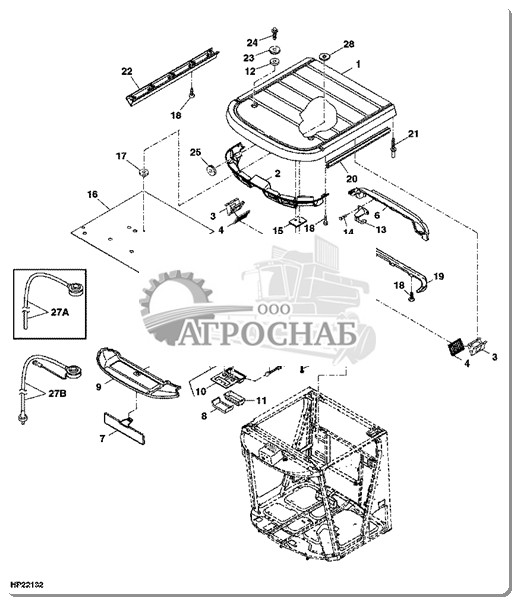

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH153796 | Roof | 1 | X | X | ||
2 | H165400 | Housing | 1 | X | X | ||
3 | H144472 | Support | 2 | X | X | ||
4 | H201240 | Grille | 2 | X | X | ||
5 | AH207960 | Headliner | 1 | X | X | ||
6 | AH207955 | Headliner | 1 | X | X | ||
7 | AH206524 | Visor | 1 | X | X | ||
8 | H131982 | Lens | 1 | X | X | ||
9 | AH207961 | Headliner | 1 | X | X | ||
10 | H207815 | Base | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
57M7173 | Bulb | AR | X | X | |||
11 | AH154218 | Cover | 1 | X | X | ||
12 | H123991 | Bushing | 2 | X | X | ||
13 | L113023 | Hook | 1 | X | X | ||
14 | 37M7074 | Screw | 2 | X | X | ||
15 | H169512 | Isolator | 1 | X | X | ||
16 | AH160592 | Plane | 1 | X | X | ||
17 | 24M7178 | Washer | 1 | X | X | 10.500 X 30 X 2.500 mm | |
18 | R126355 | Screw | 23 | X | X | ||
19 | H143460 | Cover | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
20 | AH120541 | Weatherstrip | 1 | X | X | ||
21 | H123740 | Stud | 4 | X | X | ||
22 | H130301 | Cover | 2 | X | X | ||
23 | 24M7051 | Washer | 2 | X | X | 21 X 37 X 3 mm | |
24 | 19M7789 | Screw | 2 | X | X | M12 X 30 | |
25 | H123796 | Grommet | 1 | X | X | ||
26 | AH153910 | Switch | 1 | X | X | (A) | |
27A | AH201324 | Antenna Cable | 1 | X | X | (SUB RE70019) | |
27B | RE70019 | Cable | 1 | X | X | ||
28 | H201414 | Sealing Washer | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
29 | AH171002 | Lamp | 1 | X | X | ||
30 | AH89557 | Clip | 3 | X | X | ||
31 | H123995 | Screw | 3 | X | X |

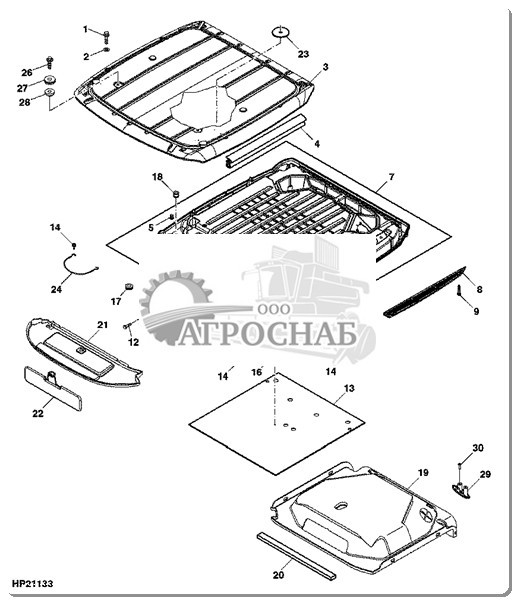

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | R117569 | Screw | AR | X | X | ||
2 | 24M7100 | Washer | AR | X | X | 6.600 X 22 X 2 mm | |
3 | AH215331 | Roof | 1 | X | X | ||
4 | H220965 | Isolator | 1 | X | X | SUB FOR AH217829 APPL | |
5 | R232224 | Nut | AR | X | X | ||
6 | H123740 | Stud | 4 | X | X | ||
7 | AH211110 | Roof | 1 | X | X | ||
8 | H218000 | Cover | 1 | X | X | ||
9 | 19M8649 | Screw | 4 | X | X | M6 X 20 | |
10 | AH117301 | Clamp | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | AH89557 | Clip | 2 | X | X | ||
12 | 37M7074 | Screw | 2 | X | X | ||
13 | AH160592 | Plane | 1 | X | X | ||
14 | H114038 | Screw | AR | X | X | ||
15 | AH217270 | Bracket | 1 | X | X | ||
16 | 24M7178 | Washer | 1 | X | X | 10.500 X 30 X 2.500 mm | |
17 | H217540 | Isolator | 1 | X | X | ||
18 | R65476 | Grommet | 6 | X | X | ||
19 | AH217129 | Headliner | 1 | X | X | ||
20 | AH220982 | Isolator | 1 | X | X | (SUB FOR AH214870) | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
21 | AH207961 | Headliner | 1 | X | X | ||
22 | AH206524 | Visor | 1 | X | X | ||
23 | H201414 | Sealing Washer | 1 | X | X | ||
24 | AH217271 | Wiring Lead | 2 | X | X | ||
25 | L113023 | Hook | 1 | X | X | ||
26 | 19M7791 | Bolt | 2 | X | X | M12 X 40 | |
27 | 24M7051 | Washer | 2 | X | X | 21 X 37 X 3 mm | |
28 | H123991 | Bushing | 2 | X | X | ||
29 | R222607 | Bezel | 2 | X | X | ||
30 | 37M7218 | Screw | 6 | X | X |

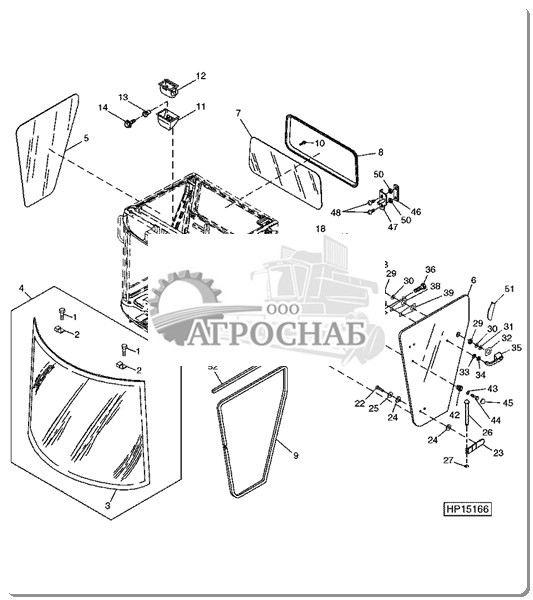

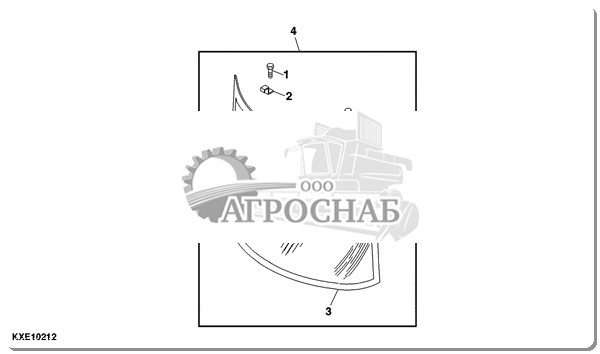

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | 19M7866 | Screw | 2 | X | X | M8 X 20 | |
2 | AH132819 | Bracket | 2 | X | X | ||
3 | ...... | Windshield | 1 | X | X | ||
4 | AH166648 | Windshield Kit | 1 | X | X | (A) | |
5 | HXE49404 | Windowpane | 1 | X | X | SUB FOR H123794 | |
6 | HXE49412 | Door | 1 | X | X | SUB FOR H206852 | |
7 | HXE49411 | Windowpane | 1 | X | X | SUB FOR H125769 | |
8 | H153394 | Bezel | 1 | X | X | ||
9 | AH209861 | Isolator | AR | X | X | ||
10 | H165689 | Screw | 12 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | H165490 | Housing | 1 | X | X | ||
12 | AH104259 | Ashtray | 1 | X | X | ||
13 | H169634 | Nut | 2 | X | X | ||
14 | 37M7160 | Screw | 2 | X | X | M6 X 16 | |
15 | 14M7478 | Lock Nut | 1 | X | X | M8 | |
16 | 24M7260 | Washer | 1 | X | X | 8.400 X 24 X 2 mm | |
17 | R131261 | Washer | 1 | X | X | ||
18 | H207060 | Screw | 1 | X | X | ||
19 | AH216261 | Cover | 1 | X | X | (SUB FOR AH206966) | |
20 | AH206962 | Latch | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
21 | H207062 | Bearing | 1 | X | X | ||
22 | 21M7292 | Screw | 4 | X | X | M6 X 16 | |
23 | H208790 | Hinge | 2 | X | X | (SUB FOR Z51940) | |
24 | Z41356 | Washer | 8 | X | X | ||
25 | 24M7437 | Lock Washer | 4 | X | X | 6.500 X 35 X 3 mm | |
26 | Z41360 | Pin | 2 | X | X | ||
27 | 40M7126 | Snap Ring | 2 | X | X | ||
28 | AH206963 | Tube | 1 | X | X | ||
29 | L79432 | Nut | 1 | X | X | ||
30 | L79433 | Washer | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
31 | L78690 | Bushing | 1 | X | X | ||
32 | H207057 | Gasket | 1 | X | X | ||
33 | H207058 | Gasket | 1 | X | X | ||
34 | L78691 | Bushing | 1 | X | X | ||
35 | AH206969 | Handle | 1 | X | X | ||
36 | 19M7574 | Screw | 2 | X | X | M8 X 40 | |
37 | 21M7310 | Screw | 1 | X | X | M6 X 25 | |
38 | H206751 | Bracket | 1 | X | X | ||
39 | H207016 | Spacer | 1 | X | X | ||
40 | 24M7055 | Washer | 2 | X | X | 8.400 X 16 X 1.600 mm | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
41 | 14M7166 | Lock Nut | 2 | X | X | M8 | |
42 | L78851 | Bushing | 1 | X | X | ||
43 | 24M7036 | Washer | 1 | X | X | 9 X 16 X 1.600 mm | |
44 | 19M7867 | Screw | 1 | X | X | M8 X 25 | |
45 | L78703 | Cap | 1 | X | X | ||
46 | H207001 | Strap | 1 | X | X | ||
47 | AH206878 | Striker | 1 | X | X | ||
48 | L100285 | Screw | 1 | X | X | ||
49 | 24M7054 | Washer | 1 | X | X | 6.400 X 12 X 1.600 mm | |
50 | H136590 | Disk Spring | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
51 | AH163647 | Bumper | 1 | X | X | ||
52 | ...... | Seal | 1 | X | X | CTL 1050 mm, MF H88769 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | 19M7866 | Screw | 2 | X | X | M8 X 20 | |
2 | AH132819 | Bracket | 2 | X | X | ||
3 | ...... | Windshield | 1 | X | X | ||
4 | AH166648 | Windshield Kit | 1 | X | X | (A) | |
5 | HXE49404 | Windowpane | 1 | X | X | SUB FOR H123794 | |
6 | HXE49412 | Door | 1 | X | X | SUB FOR H204118 | |
7 | HXE49411 | Windowpane | 1 | X | X | SUB FOR H125769 | |
8 | H153394 | Bezel | 1 | X | X | ||
9 | AH209861 | Isolator | AR | X | X | ||
10 | H165689 | Screw | 12 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | H165490 | Housing | 1 | X | X | ||
12 | AH104259 | Ashtray | 1 | X | X | ||
13 | H169634 | Nut | 2 | X | X | ||
14 | 37M7160 | Screw | 2 | X | X | M6 X 16 | |
15 | 14M7478 | Lock Nut | 1 | X | X | M8 | |
16 | 24M7260 | Washer | 1 | X | X | 8.400 X 24 X 2 mm | |
17 | R131261 | Washer | 1 | X | X | ||
18 | H207060 | Screw | 1 | X | X | ||
19 | AH216261 | Cover | 1 | X | X | ||
20 | AH206962 | Latch | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
21 | H207062 | Bearing | 1 | X | X | ||
22 | 21M7292 | Screw | 4 | X | X | M6 X 16 | |
23 | H208790 | Hinge | 2 | X | X | ||
24 | Z41356 | Washer | 8 | X | X | ||
25 | 24M7437 | Lock Washer | 4 | X | X | 6.500 X 35 X 3 mm | |
26 | Z41360 | Pin | 2 | X | X | ||
27 | 40M7126 | Snap Ring | 2 | X | X | ||
28 | AH206963 | Tube | 1 | X | X | ||
29 | L79432 | Nut | 1 | X | X | ||
30 | L79433 | Washer | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
31 | L78690 | Bushing | 1 | X | X | ||
32 | H207057 | Gasket | 1 | X | X | ||
33 | H207058 | Gasket | 1 | X | X | ||
34 | L78691 | Bushing | 1 | X | X | ||
35 | AH206969 | Handle | 1 | X | X | ||
36 | 19M7574 | Screw | 2 | X | X | M8 X 40 | |
37 | 21M7310 | Screw | 1 | X | X | M6 X 25 | |
38 | H206751 | Bracket | 1 | X | X | ||
39 | H207016 | Spacer | 1 | X | X | ||
40 | 24M7055 | Washer | 2 | X | X | 8.400 X 16 X 1.600 mm | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
41 | 14M7166 | Lock Nut | 2 | X | X | M8 | |
42 | L78851 | Bushing | 1 | X | X | ||
43 | 24M7036 | Washer | 1 | X | X | 9 X 16 X 1.600 mm | |
44 | 19M7867 | Screw | 1 | X | X | M8 X 25 | |
45 | L78703 | Cap | 1 | X | X | ||
46 | H207001 | Strap | 1 | X | X | ||
47 | AH206878 | Striker | 1 | X | X | ||
48 | L100285 | Screw | 1 | X | X | ||
49 | 24M7054 | Washer | 1 | X | X | 6.400 X 12 X 1.600 mm | |
50 | H136590 | Disk Spring | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
51 | AH163647 | Bumper | 1 | X | X | ||
52 | ...... | Seal | 1 | X | X | 1050 MM, (CUT FROM H88769) |
key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
---|---|---|---|---|---|---|
1 | 19M7866 | Screw | 2 | M8 X 20 | ||
2 | AH132819 | Bracket | 2 | |||
3 | ...... | Windshield | 1 | |||
4 | AXE32108 | Windshield Kit | 1 | SUB FOR KXE10212 |

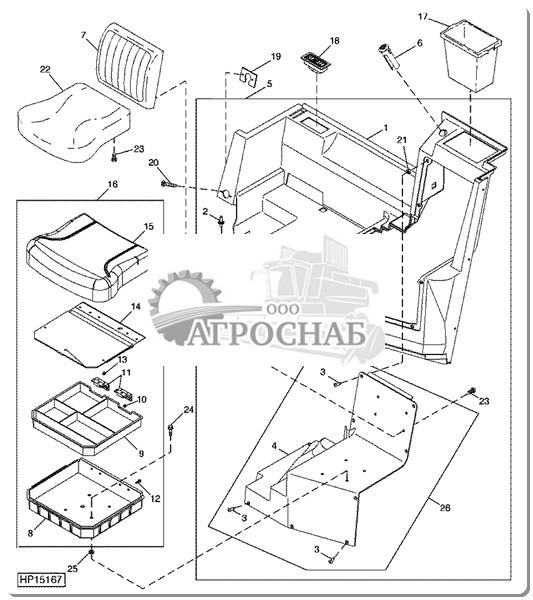

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | ...... | Console | 1 | X | X | ||
2 | H168781 | Stud | 6 | X | X | ||
3 | H177654 | Screw | 8 | X | X | (A) | |
4 | H178390 | Cover | 1 | X | X | (A) | |
5 | AH202353 | Console | 1 | X | X | ||
6 | H161023 | Vent | 1 | X | X | ||
7 | AH171536 | Cushion | 1 | X | X | ||
8 | H169083 | Pan | 1 | X | X | ||
9 | H169082 | Tray | 1 | X | X | ||
10 | 14M7303 | Flange Nut | 8 | X | X | M6 | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | AH162559 | Hinge | 2 | X | X | ||
12 | 03M7221 | Bolt | 4 | X | X | M6 X 16 | |
13 | 37M7214 | Screw | 3 | X | X | ||
14 | AH203350 | Folder | 1 | X | X | ||
15 | ...... | Seat | 1 | X | X | (ORDER AH203515) | |
16 | AH203515 | Seat | 1 | X | X | ORDER AXE50327 | |
AXE50327 | Seat | 1 | X | X | |||
17 | H168433 | Container | 1 | X | X | ||
18 | AH134724 | Louver | 1 | X | X | ||
19 | H167337 | Bracket | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
20 | 37M7155 | Screw | 2 | X | X | 4.8 X 13 MM | |
21 | H169634 | Nut | 8 | X | X | ||
22 | AH171537 | Seat | 1 | X | X | ||
23 | 19M7866 | Screw | 8 | X | X | M8 X 20 | |
24 | 03M7184 | Bolt | 4 | X | X | M8 X 20 | |
25 | 14M7298 | Flange Nut | 4 | X | X | M8 | |
.. | AH202356 | Cover Kit | 1 | X | X | (B) (INCL A) |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | ...... | Console | 1 | X | X | ||
2 | H168781 | Stud | 6 | X | X | ||
3 | H177654 | Screw | 8 | X | X | ||
4 | H178390 | Cover | 1 | X | X | ||
5 | AH202353 | Console | 1 | X | X | (A) | |
AH228371 | Console | 1 | X | X | (B) | ||
6 | H161023 | Vent | 1 | X | X | ||
7 | AH171536 | Cushion | 1 | X | X | ||
8 | H169083 | Pan | 1 | X | X | ||
9 | H169082 | Tray | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
10 | 14M7303 | Flange Nut | 8 | X | X | M6 | |
11 | AH162559 | Hinge | 2 | X | X | ||
12 | 03M7221 | Bolt | 4 | X | X | M6 X 16 | |
13 | 37M7214 | Screw | 3 | X | X | ||
14 | AH203350 | Folder | 1 | X | X | ||
15 | ...... | Seat | 1 | X | X | ||
16 | AH203515 | Seat | 1 | X | X | ORDER AXE50327 | |
AXE50327 | Seat | 1 | X | X | |||
17 | H168433 | Container | 1 | X | X | ||
18 | AH134724 | Louver | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
19 | H167337 | Bracket | 1 | X | X | ||
20 | 37M7155 | Screw | 2 | X | X | 4.8 X 13 MM | |
21 | H169634 | Nut | 8 | X | X | ||
22 | AH171537 | Seat | 1 | X | X | ||
23 | 19M7866 | Screw | 8 | X | X | M8 X 20 | |
24 | 03M7184 | Bolt | 4 | X | X | M8 X 20 | |
25 | 14M7298 | Flange Nut | 4 | X | X | M8 | |
26 | AH202358 | Cover | 1 | X | X |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|

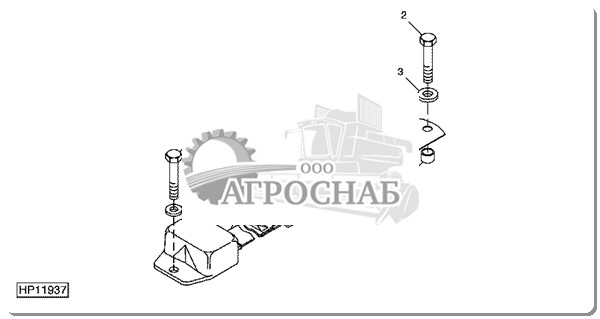

1 | AH166364 | Seat Belt | 1 | X | X | ||
2 | 19H1669 | Cap Screw | 2 | X | X | 7/16" X 1-3/4" | |
3 | 24M7043 | Washer | 2 | X | X | 12 X 25 X 3 mm | |
4 | 28H1884 | Spacer | 1 | X | X | 0.493" X 0.675" X 1/2" |

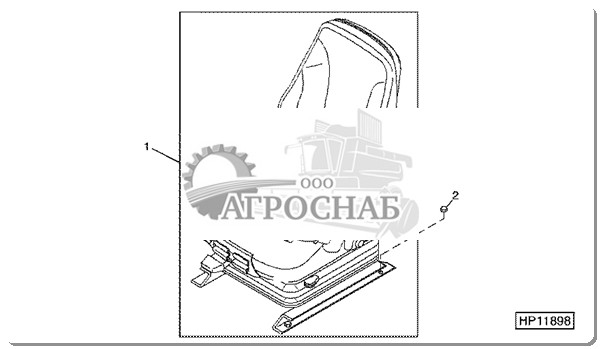

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH169595 | Seat | 1 | X | X | ||
2 | H137859 | Flange Nut | 4 | X | X |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AL117352 | Lever | 1 | X | X | ||
2 | AH203004 | OPR Presence Switch Kit | 1 | X | X | ||
3 | AL117443 | Shield | 1 | X | X | ||
4 | AH203005 | Support | 1 | X | X | ||
5 | 14M7426 | Lock Nut | 4 | X | X | M8 | |
6 | H203729 | Bushing | 1 | X | X | ||
7 | 14M7166 | Lock Nut | 1 | X | X | M8 | |
8 | AL117447 | Grip | 1 | X | X | ||
9 | AL117448 | Plate | 1 | X | X | ||
10 | AL117444 | Grip | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | 16M7114 | Rivet | 4 | X | X | 6 mm | |
12 | AL117445 | Plate | 1 | X | X | ||
13 | AL117446 | Shield | 1 | X | X | ||
14 | L115016 | Lever | 1 | X | X |

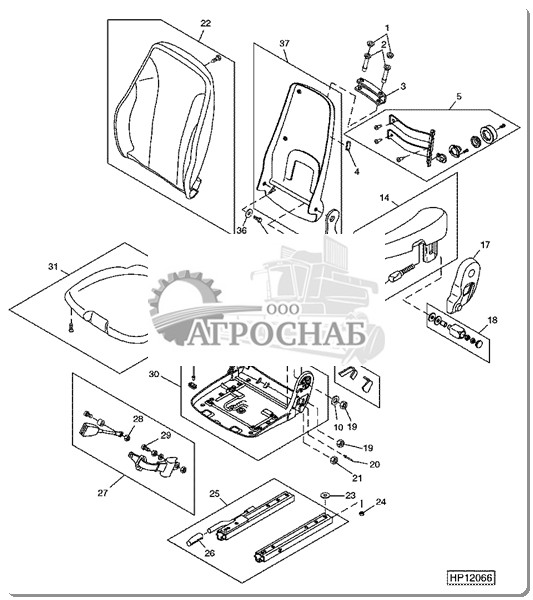

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | H203741 | Plug | 2 | X | X | ||
2 | H203739 | Tube | 2 | X | X | ||
3 | H203737 | Bracket | 1 | X | X | ||
4 | Z74481 | Shield | 1 | X | X | ||
5 | AL151392 | Support | 1 | X | X | ||
6 | Z74494 | Bearing | 1 | X | X | ||
7 | Z74486 | Spring | 1 | X | X | ||
8 | Z74488 | Detent | 1 | X | X | ||
9 | Z74489 | Bearing | 1 | X | X | ||
10 | L79500 | Washer | AR | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | H203730 | Bushing | 1 | X | X | ||
12 | H203742 | Spring | 1 | X | X | ||
13 | H203732 | Screw | 2 | X | X | ||
14 | AL117354 | Armrest | 1 | X | X | ||
15 | AL117355 | Spindle | 1 | X | X | ||
16 | AL117358 | Lever | 1 | X | X | ||
17 | L151023 | Shield | 1 | X | X | ||
18 | AL151001 | Armrest Kit | 1 | X | X | (A) | |
19 | 14M7426 | Lock Nut | AR | X | X | M8 | |
20 | 16M7114 | Rivet | AR | X | X | 6 mm | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
21 | R168723 | Lock Nut | 3 | X | X | ||
22 | AZ58888 | Cushion | 1 | X | X | ||
23 | L79500 | Washer | 5 | X | X | ||
24 | 14M7426 | Lock Nut | 5 | X | X | M8 | |
25 | AH203007 | Rail | 1 | X | X | ||
26 | L114914 | Grip | 1 | X | X | ||
27 | AH202990 | Seat Belt | 1 | X | X | ||
28 | R168723 | Lock Nut | AR | X | X | ||
29 | H203732 | Screw | AR | X | X | ||
30 | AZ58967 | Seat | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
31 | AH203002 | Cushion | 1 | X | X | ||
32 | Z74490 | Bushing | 1 | X | X | ||
33 | H203783 | Bushing | 1 | X | X | ||
34 | H203740 | Screw | 1 | X | X | ||
35 | H203743 | Screw | 1 | X | X | ||
36 | L79500 | Washer | AR | X | X | ||
37 | AZ58968 | Seat Back | 1 | X | X |

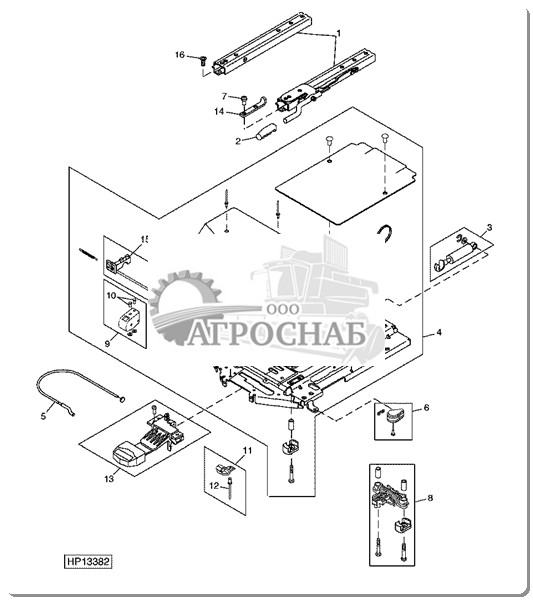

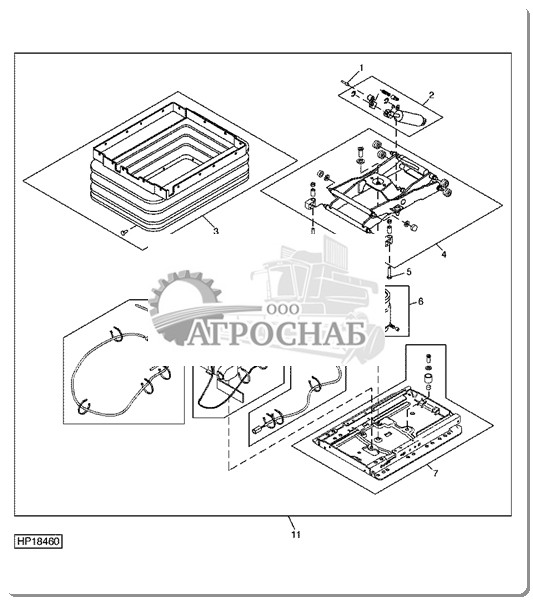

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH202987 | Push Pull Cable | 1 | X | X | ||
2 | AL117477 | Absorber | 1 | X | X | ||
3 | AH202998 | Seal Kit | 1 | X | X | ||
4 | AH202982 | Tube | 1 | X | X | ||
5 | Z74428 | Bolt | 2 | X | X | ||
6 | AL166453 | Spring | 1 | X | X | (SUB FOR AL156127) | |
7 | AH202983 | Seat Suspension | 1 | X | X | ||
8 | AH202996 | Seat Adjustment Cable Kit | 1 | X | X | ||
9 | AL166450 | Compressor | 1 | X | X | (SUB FOR AL70620) | |
10 | AH202980 | Hose | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | AH202993 | Seat Suspension | 1 | X | X |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH203007 | Rail | 1 | X | X | ||
2 | L114914 | Grip | 1 | X | X | ||
3 | AL70602 | Absorber | 1 | X | X | ||
4 | AH202994 | Console | 1 | X | X | ||
5 | AH202987 | Push Pull Cable | 1 | X | X | ||
6 | AL117475 | Grip | 1 | X | X | ||
7 | L62483 | Screw | 1 | X | X | ||
8 | AL117457 | Seat Suspension | 1 | X | X | ||

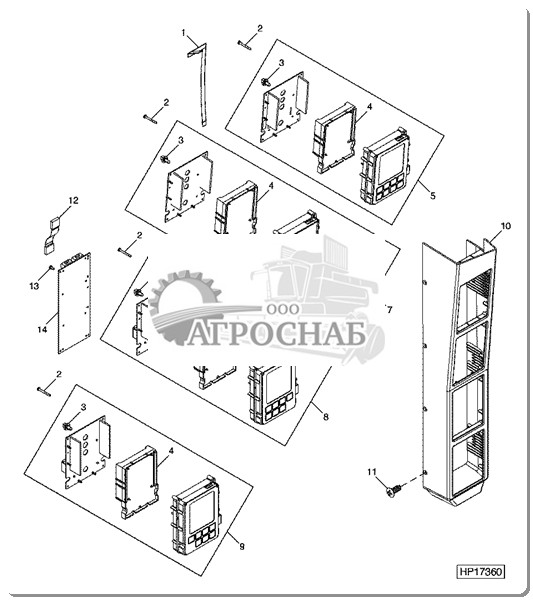

9 | AH202981 | Display Module | 1 | X | X | ||
10 | AT56660 | Rivet | 2 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | H203734 | Stop | 2 | X | X | ||
12 | L65296 | Rivet | 4 | X | X | ||
13 | AH202995 | Lever | 1 | X | X | ||
14 | H203736 | Angle | 1 | X | X | ||
15 | AL117451 | Arrestor | 1 | X | X | ||
16 | 19M7761 | Screw | 3 | X | X | M8 X 16 | |
.. | AH202993 | Seat Suspension | 1 | X | X |

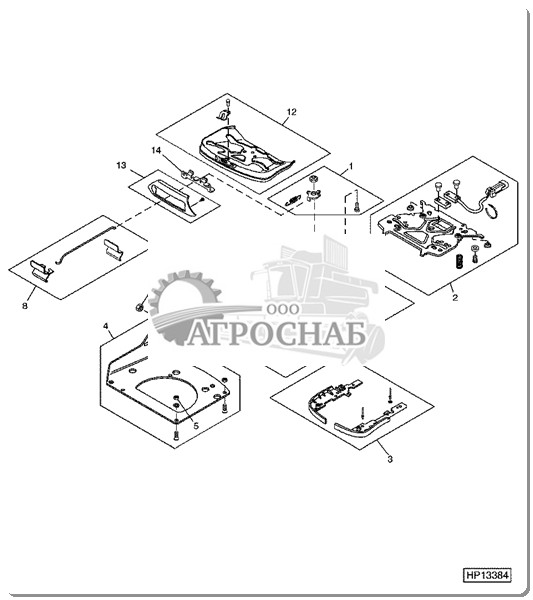

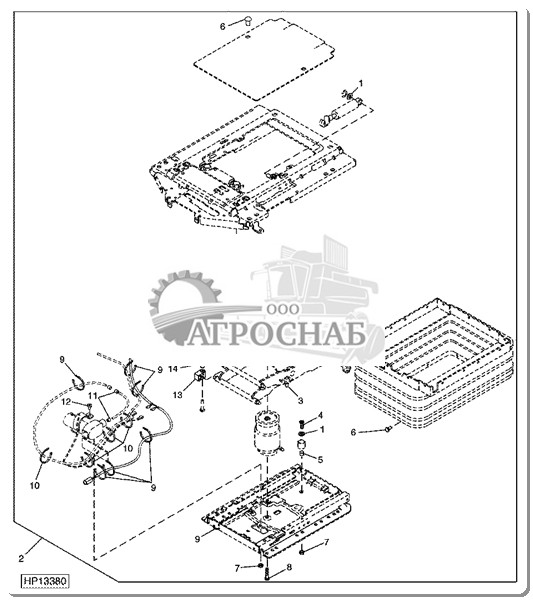

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | ...... | Washer | 3 | X | X | ||
2 | AL156124 | Seat Kit | 1 | X | X | (A) | |
3 | ...... | Stop | 2 | X | X | ||
4 | ...... | Screw | 1 | X | X | ||
5 | ...... | Bushing | 1 | X | X | ||
6 | ...... | Plug | 25 | X | X | ||
7 | ...... | Lock Nut | 4 | X | X | ||
8 | ...... | Screw | 2 | X | X | ||
9 | ...... | Tie Band | 7 | X | X | ||
10 | ...... | Tie Band | 4 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | ...... | Clamp | 2 | X | X | ||
12 | ...... | Screw | 1 | X | X | ||
13 | ...... | Bearing | 2 | X | X | ||
14 | ...... | Bushing | 4 | X | X | ||
15 | ...... | Felt | 2 | X | X | ||
16 | ...... | Bumper | 1 | X | X | ||
17 | ...... | Bushing | 2 | X | X |
key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
---|---|---|---|---|---|---|

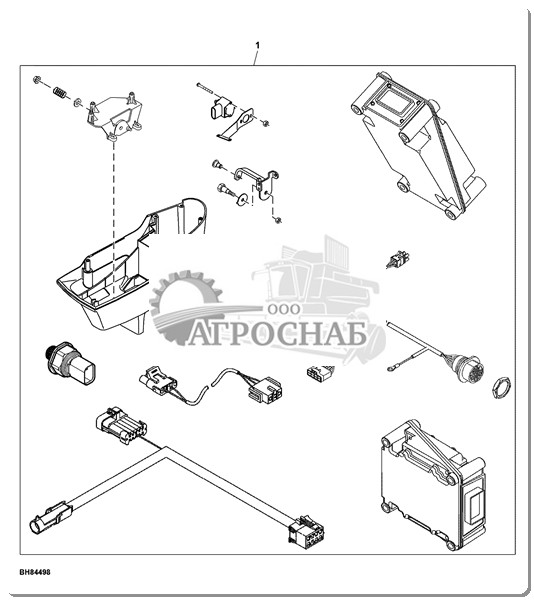

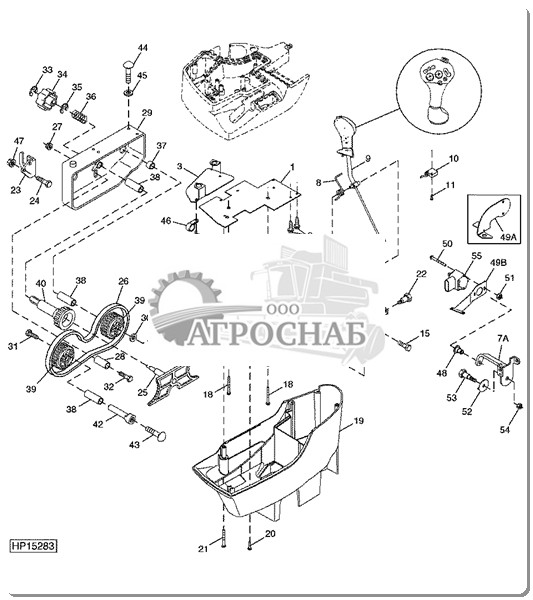

1 | BH84498 | Control Kit | 1 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH220395 | Electronic Control Unit | 1 | (SUB FOR AH210245, AH218580 OR AH217973) | |||
SE502814 | Elec Control Unit Reman | 1 | REMAN FOR AH220395 | ||||
2 | H111364 | Screw | 5 | X | X | ||
3 | H165728 | Cover | 1 | X | X | ||
4 | H111364 | Screw | 3 | X | X | ||
5 | 14M7396 | Lock Nut | 1 | X | X | M8 | |
6 | H152673 | Bracket | 1 | X | X | ||
7 | AH146744 | Arm | 1 | X | X | ||
7A | AH211438 | Arm | 1 | X | X | (A) (SUB FOR AH207418) | |
8 | H154937 | Torsion Spring | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
9 | AH214655 | Handle | 1 | X | X | (SUB FOR AH207161) | |
10 | AH161154 | Switch | 1 | X | X | (B) | |
11 | 37M7251 | Screw | 2 | X | X | ||
12 | 24H1305 | Washer | 1 | X | X | 13/32" X 13/16" X 0.065" | |
13 | 122SE | Compression Spring | 1 | X | X | ||
H207501 | Compression Spring | 1 | X | X | (A) | ||
14 | 24M7207 | Washer | 1 | X | X | 8.400 X 24 X 2 mm | |
15 | H119007 | Screw | 1 | X | X | ||
16 | RE56190 | Washer | 1 | X | X | ||
17 | R114203 | Clamp | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
18 | R124859 | Screw | 3 | X | X | ||
19 | R177553 | Housing | 1 | X | X | ||
H207546 | Housing | 1 | X | X | (A) | ||
20 | R117569 | Screw | 2 | X | X | ||
21 | R124859 | Screw | 1 | X | X | ||
22 | H131424 | Bolt | 2 | X | X | ||
23 | N372238 | Support | 1 | X | X | ||
24 | N275828 | Screw | 1 | X | X | M6 X 20 | |
25 | R150660 | Pawl | 1 | X | X | ||
26 | R124898 | V-Belt | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
27 | 14M7416 | Flange Nut | 1 | X | X | M8 | |
28 | R128232 | Bushing | 1 | X | X | ||
29 | R189600 | Housing | 1 | X | X | ||
30 | 24M7028 | Washer | 2 | X | X | 10.500 X 20 X 2 mm | |
31 | 19M8953 | Screw | 2 | X | X | M10 X 20 | |
32 | 19M8319 | Screw | 1 | X | X | M8 X 50 | |
33 | 40M7088 | Snap Ring | 1 | X | X | ||
34 | R127224 | Knob | 1 | X | X | ||
35 | F2863R | Snap Ring | 1 | X | X | ||
36 | R73094 | Spring | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
37 | R124903 | Shaft | 2 | X | X | ||
38 | R130988 | Bushing | 8 | X | X | (USE WITH R130989) | |
39 | R188219 | Cam | 2 | X | X | ||
40 | R150659 | Driver | 1 | X | X | ||
41 | 19M7875 | Cap Screw | 2 | X | X | M10 X 70 | |
42 | R134351 | Pin Fastener | 2 | X | X | ||
43 | 03M7197 | Bolt | 2 | X | X | M12 X 25 | |
44 | 19M7163 | Cap Screw | 4 | X | X | M8 X 25 | |
45 | 24M7055 | Washer | 4 | X | X | 8.400 X 16 X 1.600 mm | |
46 | A34994 | Clip | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
47 | E63524 | Nut | 1 | X | X | ||
48 | H206126 | Pivot | 1 | X | X | (A) | |
49A | H207499 | Bracket | 1 | X | X | (A) (SUB H211459) | |
49B | H211459 | Bracket | 1 | X | X | (A) | |
50 | 21M7475 | Screw | 2 | X | X | (A) M4 X 35 | |
51 | 14M7264 | Lock Nut | 2 | X | X | (A) M4 | |
52 | H206117 | Washer | 1 | X | X | ||
53 | H206118 | Bolt | 1 | X | X | ||
54 | 14M7396 | Lock Nut | 1 | X | X | M8 | |
55 | RE243770 | Sensor | 1 | X | X | (SUB FOR RE220069) |

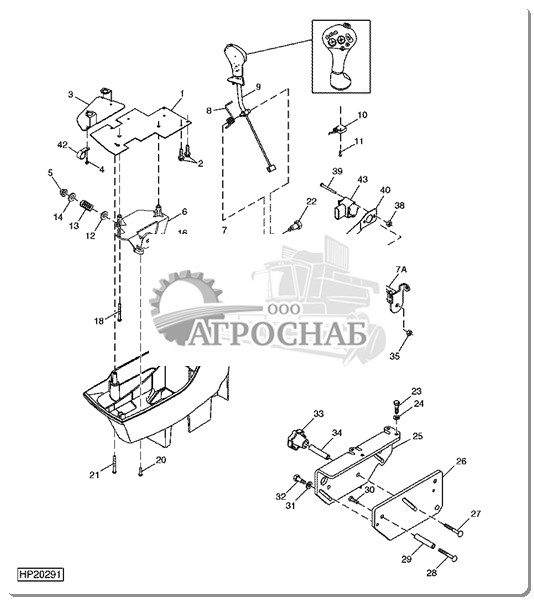

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH220395 | Electronic Control Unit | 1 | X | X | (SUB FOR AH210245, AH218580 OR AH217973) | |
SE502814 | Elec Control Unit Reman | 1 | REMAN FOR AH220395 | ||||
2 | H111364 | Screw | 5 | X | X | ||
3 | H165728 | Cover | 1 | X | X | ||
4 | H111364 | Screw | 3 | X | X | ||
5 | 14M7396 | Lock Nut | 1 | X | X | M8 | |
6 | H152673 | Bracket | 1 | X | X | ||
7 | AH146744 | Arm | 1 | X | X | ||
7A | AH211438 | Arm | 1 | X | X | (B) (SUB FOR AH207418) | |
8 | H154937 | Torsion Spring | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
9 | AH214655 | Handle | 1 | X | X | (SUB FOR AH207161) | |
10 | AH161154 | Switch | 1 | X | X | (C) | |
11 | 37M7251 | Screw | 2 | X | X | ||
12 | 24H1305 | Washer | 1 | X | X | 13/32" X 13/16" X 0.065" | |
13 | 122SE | Compression Spring | 1 | X | X | ||
H207501 | Compression Spring | 1 | X | X | (A) | ||
14 | 24M7207 | Washer | 1 | X | X | 8.400 X 24 X 2 mm | |
15 | H119007 | Screw | 1 | X | X | ||
16 | RE56190 | Washer | 1 | X | X | ||
17 | R114203 | Clamp | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
18 | R124859 | Screw | 3 | X | X | ||
19 | R177553 | Housing | 1 | X | X | ||
H207546 | Housing | 1 | X | X | (A) | ||
20 | R117569 | Screw | 2 | X | X | ||
21 | R124859 | Screw | 1 | X | X | ||
22 | H131424 | Bolt | 2 | X | X | ||
23 | 19M7163 | Cap Screw | 4 | X | X | M8 X 25 | |
24 | 24M7055 | Washer | 4 | X | X | 8.400 X 16 X 1.600 mm (A) | |
25 | AH211618 | Adjuster | 1 | X | X | (A) | |
26 | R214584 | Plate | 1 | X | X | (A) | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
27 | 03M7104 | Bolt | 1 | X | X | M10 X 70 (A) | |
28 | 03M7197 | Bolt | 2 | X | X | M12 X 25 | |
29 | R218578 | Bar | 2 | X | X | ||
30 | 19M8551 | Screw | 2 | X | X | M10 X 25 | |
31 | 24M7055 | Washer | 2 | X | X | 8.400 X 16 X 1.600 mm (A) | |
32 | H131424 | Bolt | 2 | X | X | (A) | |
33 | 99M7027 | Knob | 1 | X | X | (A) | |
34 | 28H3377 | Bushing | 1 | X | X | 0.423" X 0.675" X 1-3/4" (A) | |
35 | 14M7396 | Lock Nut | 1 | X | X | M8 | |
36 | H206118 | Bolt | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
37 | H206117 | Washer | 1 | X | X | ||
38 | 14M7264 | Lock Nut | 2 | X | X | M4 (A) | |
39 | 21M7475 | Screw | 2 | X | X | M4 X 35 (A) | |
40 | H211459 | Bracket | 1 | X | X | (A) | |
41 | H206126 | Pivot | 1 | X | X | (A) | |
42 | A34994 | Clip | 1 | X | X | ||
43 | RE243770 | Sensor | 1 | X | X | (SUB FOR RE220069) | |
.. | AH228953 | Adjuster | 1 | X | X | (SUB FOR AH218948) (INCL A) |

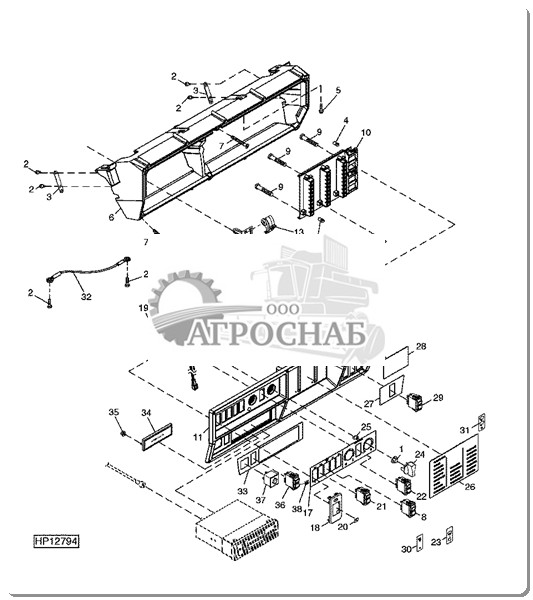

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|

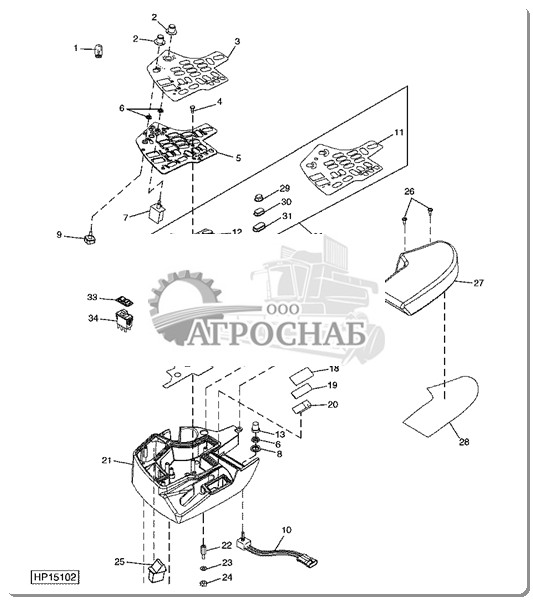

1 | AA27536 | Bulb | 6 | X | X | ||
2 | H169864 | Knob | 2 | X | X | ||
3 | H211867 | Graphics Panel | 1 | X | X | ||
H177946 | Panel | 1 | X | X | (A) | ||
4 | H118166 | Screw | 8 | X | X | ||
5 | AH166762 | Bezel | 1 | X | X | ||
6 | H106246 | Lock Nut | 2 | X | X | ||
7 | AH159180 | Switch | 1 | X | X | (B) | |
8 | R121235 | Washer | 2 | X | X | ||
9 | AH159180 | Switch | 1 | X | X | (C) | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
10 | AH154221 | Potentiometer | 2 | X | X | (D) | |
11 | H211867 | Graphics Panel | 1 | X | X | ||
H203747 | Cap | AR | X | X | 6X30 | ||
H203748 | Cap | AR | X | X | 6X25 | ||
H203749 | Cap | AR | X | X | (E) | ||
12 | AH202830 | Elastomeric Keypad | 1 | X | X | ||
13 | RE49639 | Knob | 2 | X | X | ||
14 | AH208946 | Switch | 1 | X | X | ||
15 | H170373 | Plug | 1 | X | X | ||
16 | AR56766 | Housing | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
17 | H156363 | Label | 1 | X | X | ||
18 | H153453 | Label | 1 | X | X | ||
19 | H153457 | Lens | 1 | X | X | ||
20 | H168133 | Light Bar | 1 | X | X | ||
21 | H212631 | Cover | 1 | X | X | SUB FOR H153443 | |
22 | H129367 | Stud | 1 | X | X | ||
23 | 12M7084 | Lock Washer | 1 | X | X | 4.300 mm | |
24 | 14H605 | Nut | 1 | X | X | 0.164" | |
25 | AH168941 | Switch | 1 | X | X | (F) | |
AH168662 | Toggle/Rocker Switch | 1 | X | X | (G) | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
26 | R126355 | Screw | 2 | X | X | ||
27 | AH147170 | Cushion | 1 | X | X | ||
28 | H170073 | Label | 1 | X | X | ||
29 | H203749 | Cap | AR | X | X | (E) | |
30 | H203748 | Cap | AR | X | X | 6X25 | |
31 | H203747 | Cap | AR | X | X | 6X30 | |
32 | AH213289 | Fitting Kit | 1 | X | X | (H) (SUB FOR AH204776) | |
33 | H143918 | Actuator | 1 | X | X | (I) | |
H159740 | Label | 1 | X | X | (I) | ||
34 | AH109120 | Switch | 1 | X | X | (I) | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
.. | BH81960 | Complete Goods/Ship. Bundle | 1 | X | X | (J) |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|

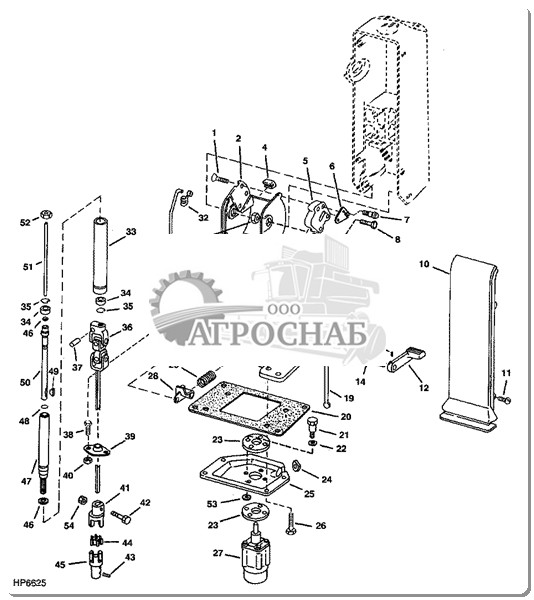

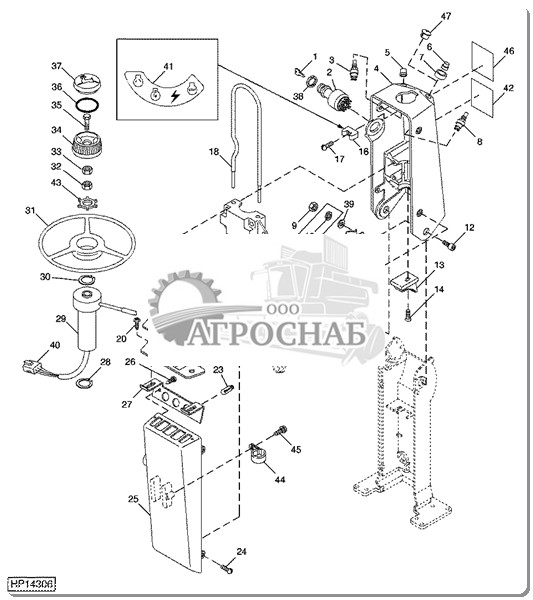

1 | H133205 | Screw | 3 | X | X | ||
2 | H218204 | Housing | 1 | X | X | (SUB FOR H152173) | |
3 | 14M7274 | Nut | 2 | X | X | M10 | |
4 | H107566 | Isolator | 1 | X | X | ||
5 | H110310 | Housing | 1 | X | X | ||
6 | H110229 | Crank | 1 | X | X | ||
7 | H170382 | Bolt | 2 | X | X | ||
8 | H107687 | Screw | 2 | X | X | ||
9 | H141327 | Pawl | 1 | X | X | ||
10 | H152172 | Cover | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | H165693 | Screw | 4 | X | X | ||
12 | H152174 | Pedal | 1 | X | X | ||
13 | 34M7102 | Spring Pin | 2 | X | X | 5 X 26 mm | |
14 | H113864 | Pin Fastener | 1 | X | X | ||
15 | H133106 | Snap Ring | 1 | X | X | ||
16 | 24M7055 | Washer | 1 | X | X | 8.400 X 16 X 1.600 mm | |
17 | 19M7800 | Screw | 4 | X | X | M8 X 50 | |
18 | H113404 | Compression Spring | 1 | X | X | ||
19 | H113402 | Rod | 1 | X | X | ||
20 | H123874 | Seal | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
21 | H110700 | Bolt | 4 | X | X | ||
22 | 24M7028 | Washer | 4 | X | X | 10.500 X 20 X 2 mm | |
23 | H134353 | Isolator | 2 | X | X | ||
24 | H108725 | Grommet | 1 | X | X | ||
25 | H123875 | Support | 1 | X | X | ||
26 | 19M7867 | Screw | 4 | X | X | M8 X 25 | |
27 | AH209428 | Valve | 1 | X | X | ||
28 | H107582 | Arm | 1 | X | X | ||
29 | H107584 | Compression Spring | 1 | X | X | ||
30 | R26501 | Clip | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
31 | H131186 | Rod | 1 | X | X | ||
32 | R26524 | Clip | 1 | X | X | ||
33 | H107567 | Tube | 1 | X | X | ||
34 | AH97920 | Ball Bearing | 2 | X | X | ||
35 | H80753 | Snap Ring | 2 | X | X | ||
36 | AH139065 | Universal Joint With Shaft | 1 | X | X | ||
37 | 34M7124 | Spring Pin | 1 | X | X | 8 X 30 mm | |
38 | 19M7866 | Screw | 2 | X | X | M8 X 20 | |
39 | AH129236 | Bearing | 1 | X | X | ||
40 | 14M7166 | Lock Nut | 2 | X | X | M8 | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
41 | H162569 | Coupling | 1 | X | X | ||
42 | H164921 | Screw | 1 | X | X | M8 X 45 | |
43 | 22M7072 | Set Screw | 2 | X | X | M6 X 10 | |
44 | H134624 | Isolator | 1 | X | X | ||
45 | H134623 | Splined Coupling | 1 | X | X | ||
46 | H99294 | Washer | 2 | X | X | ||
47 | AH130429 | Steering Shaft | 1 | X | X | ||
48 | H36256 | O-Ring | 1 | X | X | ||
49 | H137667 | Shaft Key | 1 | X | X | ||
50 | H107570 | Steering Shaft | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
51 | H107586 | Pin | 1 | X | X | ||
52 | 14M7257 | Nut | 1 | X | X | M20 | |
53 | H141946 | Washer | 4 | X | X | ||
54 | 14M7396 | Lock Nut | 1 | X | X | M8 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AT195302 | Key | 1 | X | X | ||
2 | AH202513 | Rotary Switch | 1 | X | X | ||
3 | R39554 | Switch | 1 | X | X | (A) | |
4 | H152171 | Housing | 1 | X | X | ||
5 | T55501 | Cap | 1 | X | X | ||
6 | T55585 | Cap | 1 | X | X | ||
7 | H132895 | Guard | 1 | X | X | ||
8 | R39554 | Switch | 1 | X | X | (B) | |
9 | 14M7400 | Lock Nut | 2 | X | X | M10 | |
10 | 12M7066 | Lock Washer | 2 | X | X | 10 mm | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | AH96317 | Clip | AR | X | X | ||
12 | H107687 | Screw | 2 | X | X | ||
13 | H110812 | Gear | 1 | X | X | ||
14 | H133205 | Screw | 2 | X | X | M8 X 25 | |
15 | H150383 | Clamp | 1 | X | X | ||
16 | H113863 | Guide | 1 | X | X | ||
17 | 37M7071 | Screw | 1 | X | X | ||
18 | AH150611 | Guard | 1 | X | X | ||
19 | 19M7800 | Screw | 4 | X | X | M8 X 50 | |
20 | H132899 | Screw | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
21 | H146392 | Sign | 1 | X | X | ||
22 | H146391 | Panel | 1 | X | X | ||
23 | AA27536 | Bulb | 1 | X | X | ||
24 | H165693 | Screw | 4 | X | X | M6 X 12 | |
25 | H152170 | Cover | 1 | X | X | ||
26 | 37H6 | Screw | 2 | X | X | ||
27 | H132897 | Retainer | 1 | X | X | ||
28 | R26192 | Snap Ring | 1 | X | X | ||
29 | AH121340 | Turn Signal Controller | 1 | X | X | ||
T23529 | Snap Ring | 1 | X | X | |||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
30 | R26192 | Snap Ring | 1 | X | X | ||
31 | RE46962 | Steering Wheel | 1 | X | X | ||
32 | 14M7257 | Nut | 1 | X | X | M20 | |
33 | 14M7273 | Nut | 1 | X | X | M8 | |
34 | H108822 | Knob | 1 | X | X | ||
35 | 19M7164 | Cap Screw | 1 | X | X | M8 X 50 | |
36 | B3690R | O-Ring | 1 | X | X | ||
37 | AL155227 | Cover | 1 | X | X | ||
38 | R44342 | Nut | 1 | X | X | ||
39 | 24M7028 | Washer | 1 | X | X | 10.500 X 20 X 2 mm | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
40 | AH116902 | Electrical Connector Assy | 1 | X | X | ||
41 | H146042 | Label | 1 | X | X | ||
42 | N372425 | Safety Sign | 1 | X | X | (C) | |
43 | T17148 | Lock Washer | 1 | X | X | ||
44 | AH89557 | Clip | 1 | X | X | ||
45 | 37M7083 | Screw | 1 | X | X | M8 X 12 | |
46 | H202640 | Label | 1 | X | X | (D) | |
47 | E92139 | Plug | 1 | X | (CIS) |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|

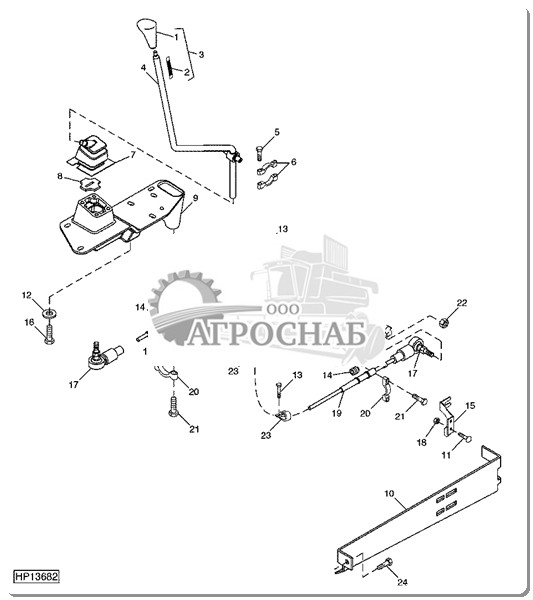

1 | ...... | Knob | 1 | X | X | ||
2 | ...... | Label | 1 | X | X | ||
3 | AH206788 | Manual Shifter | 1 | X | X | (A) | |
4 | AH172140 | Lever | 1 | X | X | ||
5 | 19M8318 | Screw | 4 | X | X | M8 X 45 | |
6 | H131040 | Bearing | 4 | X | X | ||
7 | H177930 | Boot | 1 | X | X | ||
8 | H133660 | Seal | 1 | X | X | ||
9 | H177928 | Support | 1 | X | X | ||
10 | H209573 | Guard | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | 03M7191 | Bolt | 2 | X | X | M10 X 25 | |
12 | 24H1296 | Washer | 5 | X | X | 11/32" X 1-3/8" X 0.134" | |
13 | 37M7058 | Screw | 3 | X | X | M8 X 20 | |
14 | H133662 | Isolator | 2 | X | X | ||
15 | H141315 | Bracket | 1 | X | X | ||
16 | 19M7867 | Screw | 5 | X | X | M8 X 25 | |
17 | AH125958 | Ball Joint | 2 | X | X | ||
18 | H135891 | Lock Nut | 2 | X | X | ||
19 | AH210977 | Push Pull Cable | 1 | X | X | (SUB FOR AH172141) | |
20 | H133047 | Clamp | 2 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
21 | 19M8291 | Screw | 4 | X | X | M8 X 35 | |
22 | 14M7296 | Flange Nut | 1 | X | X | M10 | |
23 | AH77724 | Clip | 3 | X | X | ||
24 | 37M7086 | Screw | 1 | X | X | M10 X 20 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH168507 | Wiring Harness | 1 | X | X | (A) | |
2 | H171285 | Bolt | 12 | X | X | ||
3 | R107890 | Bulb | 12 | X | X | ||
4 | AH154518 | Reflector | 4 | X | X | ||
5 | AH214309 | Module | 1 | X | X | (A) | |
6 | H203838 | Push Switch | 1 | X | X | ||
7 | AH206125 | Module | 1 | X | X | (B) | |
8 | AH173042 | Module | 1 | X | X | (C) | |
9 | AH167171 | Module | 1 | X | X | (D) | |
10 | H162559 | Housing | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | H163401 | Screw | 4 | X | X | M5 X 12 | |
12 | AH161865 | Wiring Harness | 1 | X | X | (B) | |
13 | 21M7268 | Screw | 8 | X | X | M3 X 6 | |
14 | AH222665 | Circuit Board Kit | 1 | X | X | (E) ORDER KXE10165 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
---|---|---|---|---|---|---|

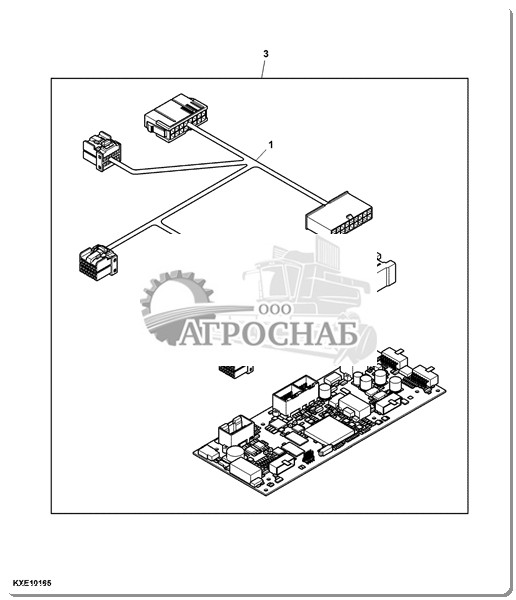

1 | AXE16241 | Wiring Harness | 1 | |||
2 | AXE19488 | Wiring Harness | 1 | |||
3 | KXE10165 | Vehicle Controller | 1 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | H106246 | Lock Nut | 2 | X | X | ||
2 | H114038 | Screw | 8 | X | X | ||
3 | H164952 | Strap | 2 | X | X | ||
4 | AH108380 | Bulb | 28 | X | X | ||
5 | H201591 | Screw | 4 | X | X | ||
6 | AH154696 | Support | 1 | X | X | ||
7 | H165690 | Screw | 6 | X | X | ||
8 | AH206706 | Toggle/Rocker Switch | 1 | X | X | (E) | |
9 | H110842 | Screw | 6 | X | X | ||
10 | AH228939 | Circuit Board Kit | 1 | X | X | SUB FOR AH210099, AH2115 19, AH215075 OR AH217696 | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | H176553 | Console | 1 | X | X | (A) | |
H218238 | Console | 1 | X | X | (B) | ||
12 | AH160236 | Sensor | 1 | X | X | (D) | |
13 | H166839 | Wheel | 1 | X | X | ||
14 | H166840 | Frame | 1 | X | X | ||
15 | AH162163 | Switch | 1 | X | X | ||
16 | AH154221 | Potentiometer | 2 | X | X | Temperature / Fan | |
17 | H175848 | Graphics Panel | 1 | X | X | ||
18 | H176083 | Base | 1 | X | X | ||
19 | 37M7066 | Screw | 2 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
20 | H166959 | Label | 1 | X | X | ||
21 | AH206705 | Toggle/Rocker Switch | 1 | X | X | ||
22 | AH158290 | Toggle/Rocker Switch | 2 | X | X | (C) | |
23 | H169067 | Label | 1 | X | X | ||
24 | H168755 | Knob | 2 | X | X | Temperature / Fan | |
25 | H168757 | Cam | 2 | X | X | ||
26 | H177770 | Graphics Panel | 1 | X | X | ||
H208372 | Graphics Panel | 1 | X | X | |||
27 | H176440 | Graphics Panel | 1 | X | X | ||
28 | H175577 | Graphics Panel | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
29 | AH158291 | Toggle/Rocker Switch | 1 | X | X | ||
30 | H161937 | Label | 1 | X | X | ||
H161938 | Label | 1 | X | X | |||
H161939 | Label | 1 | X | X | |||
H161940 | Label | 1 | X | X | |||
31 | H164260 | Label | 1 | X | X | ||
32 | AH217271 | Cable | 1 | X | X | SUB FOR AH124882 | |
33 | H161166 | Graphics Panel | 1 | X | X | (F) | |
H161161 | Graphics Panel | 1 | X | X | (G) | ||
H218442 | Graphics Panel | 1 | X | X | (G) | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
34 | H201241 | Panel | 1 | X | X | ||
35 | H117239 | Push Nut | 2 | X | X | ||
36 | AZ36343 | Toggle/Rocker Switch | 1 | X | X | ||
37 | AZ103320 | Switch | 1 | X | X | (A) (SUB FOR AZ47908) | |
RE236245 | Switch | 1 | X | X | (B) | ||
38 | Z60250 | Label | 1 | X | X | ||
.. | BH84384 | Complete Goods/Ship. Bundle | 1 | X | X | (A) (H) | |
.. | BH84485 | Complete Goods/Ship. Bundle | 1 | X | X | (B) (H) |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|

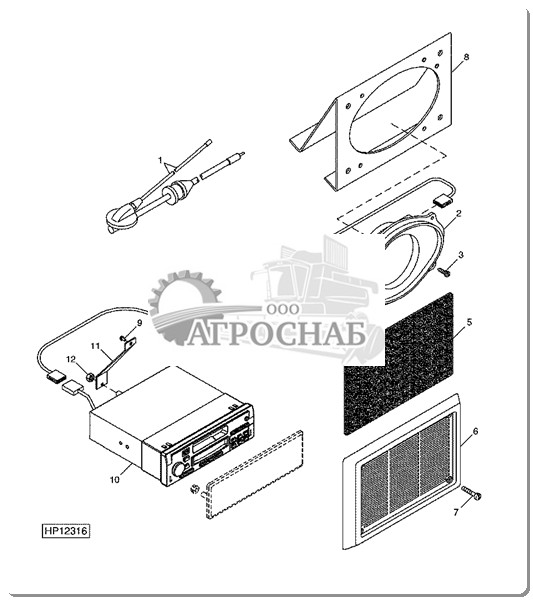

1 | AH224971 | Antenna | 1 | X | X | SUB FOR AH213697 | |
2 | AH138098 | Speaker | 2 | X | X | ||
3 | 37M7215 | Screw | 4 | X | X | ||
4 | AH211698 | Jumper | 1 | X | X | (SUB FOR AH166980) | |
5 | H145264 | Isolator | 1 | X | X | ||
6 | H201240 | Grille | 2 | X | X | ||
7 | 37M7100 | Screw | 4 | X | X | ||
8 | H144472 | Support | 1 | X | X | ||
9 | H114038 | Screw | 1 | X | X | ||
10 | RE265545 | Radio | 1 | X | X | (A) (SUB FOR RE190139) | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
RE190140 | Radio | 1 | X | X | (B) | ||
RE289629 | Radio | 1 | X | X | (C) (SUB FOR RE190141 OR RE227953) | ||
11 | H171011 | Bracket | 1 | X | X | ||
12 | 14M7375 | Flange Nut | 1 | X | X | M5 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|

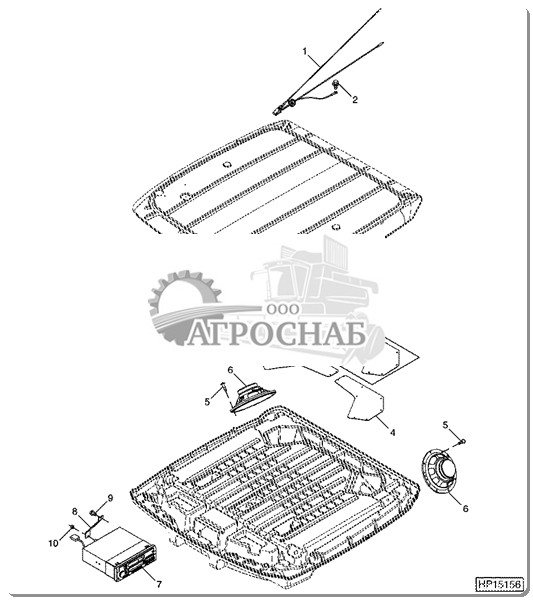

1 | AH224971 | Antenna | 1 | X | X | SUB FOR AH213697 | |
2 | 37M7089 | Screw | 1 | X | X | M6 X 12 | |
3 | RE235441 | Seal | 1 | X | X | ||
4 | R235304 | Cover | 2 | X | X | ||
5 | 37M7218 | Screw | 8 | X | X | ||
6 | RE254829 | Speaker | 2 | X | X | (SUB FOR RE61545) | |
7 | RE265545 | Radio | 1 | X | X | (A) (SUB FOR RE190139) | |
8 | H171011 | Bracket | 1 | X | X | ||
9 | H114038 | Screw | 1 | X | X | ||
10 | 14M7375 | Flange Nut | 1 | X | X | M5 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | RE70019 | Cable | 1 | X | X | ||
2 | 19M7932 | Cap Screw | 1 | X | X | M8 X 16 | |
3 | 12M7032 | Lock Washer | 1 | X | X | 8.400 mm | |
4 | 14M7166 | Lock Nut | 1 | X | X | M8 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|

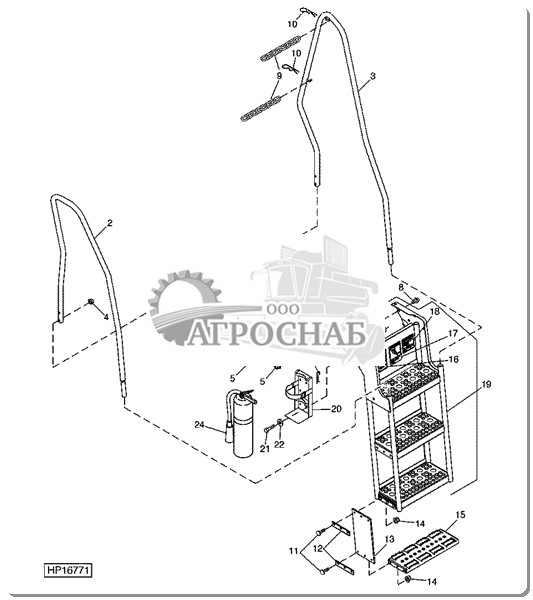

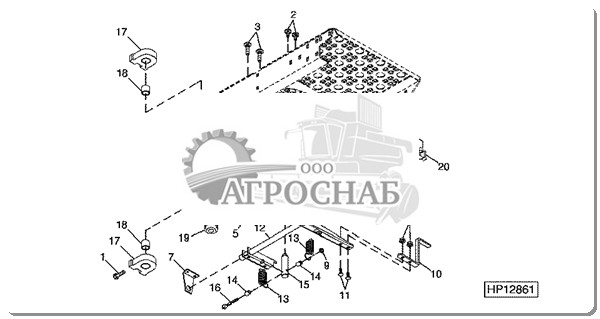

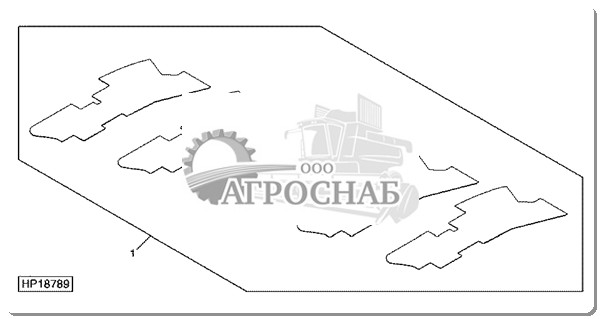

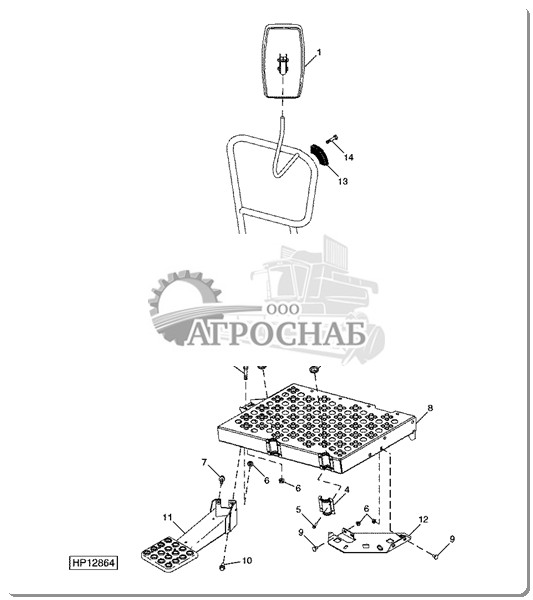

1 | AH206407 | Extension | 1 | X | X | (940) | |
AH206408 | Extension | 1 | X | X | (1390) | ||
2 | H167174 | Handrail | 1 | X | X | (940) | |
AH160470 | Handrail | 1 | X | X | (1390) | ||
3 | AH160473 | Handrail | 1 | X | X | (940) | |
AH160475 | Handrail | 1 | X | X | (1390) | ||
4 | H135891 | Lock Nut | 4 | X | X | ||
5 | 14M7296 | Flange Nut | 8 | X | X | M10 | |
6 | 19M7807 | Screw | 8 | X | X | M10 X 60 | |
7 | 03M7191 | Bolt | 2 | X | X | M10 X 25 | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
8 | 19M7784 | Screw | 6 | X | X | M10 X 20 | |
9 | AH146041 | Safety Chain | 2 | X | X | ||
10 | B32630 | Spring Locking Pin | 2 | X | X | ||
11 | 03M7186 | Bolt | 12 | X | X | M8 X 30 | |
12 | H136127 | Plate | 4 | X | X | ||
13 | H136126 | Hanger | 2 | X | X | ||
14 | 14M7396 | Lock Nut | 12 | X | X | M8 | |
15 | H136011 | Step | 1 | X | X | ||
16 | H149064 | Label | 1 | X | X | (A) | |
17 | H170654 | Safety Sign | 1 | X | X | (B) | |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
18 | E82510 | Label | 1 | X | X | (C) | |
19 | AH230525 | Ladder | 1 | X | X | SUB FOR APPL AH206380 | |
20 | AH170596 | Bracket | 1 | X | X | ||
21 | 19M7785 | Screw | 2 | X | X | M10 X 25 | |
22 | 24M7101 | Washer | 2 | X | X | 11 X 34 X 3 mm | |
23 | 14M7296 | Flange Nut | 2 | X | X | M10 | |
24 | AT184159 | Fire Extinguisher | 1 | X | X | ||
AH172868 | Fire Extinguisher | 1 | X | X | (D) | ||
25 | 28316 | Spring Locking Pin | 1 | X | X |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | 19M7792 | Screw | 4 | X | X | M16 X 30 | |
2 | 03M7251 | Bolt | 4 | X | X | M6 X 12 | |
3 | 03M7186 | Bolt | 2 | X | X | M8 X 30 | |
4 | H129761 | Bushing | 1 | X | X | ||
5 | 14M7396 | Lock Nut | 2 | X | X | M8 | |
6 | R60730 | Extension Spring | 1 | X | X | ||
7 | H129763 | Bracket | 2 | X | X | ||
8 | 14M7303 | Flange Nut | 4 | X | X | M6 | |
9 | 14M7298 | Flange Nut | 3 | X | X | M8 | |
10 | H203537 | Pedal | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | 03M7185 | Bolt | 2 | X | X | M8 X 25 | |
12 | AH128610 | Latch | 1 | X | X | ||
13 | H137360 | Extension Spring | 2 | X | X | ||
14 | 28H1686 | Spacer | 2 | X | X | 0.364" X 0.540" X 5/8" | |
15 | H129760 | Pin | 1 | X | X | ||
16 | 19M7803 | Screw | 1 | X | X | M8 X 70 | |
17 | H129610 | Bearing Housing W/O Bearing | 2 | X | X | ||
18 | H111478 | Sleeve | 2 | X | X | ||
19 | H114603 | Grommet | 1 | X | X | ||
20 | H172197 | Hose Clamp | 6 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
21 | AH89557 | Clip | 1 | X | X |
key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
---|---|---|---|---|---|---|
1 | AH204941 | Mat Kit | 1 |
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH142404 | Rear View Mirror | 1 | X | X | ||
AZ100258 | Rear View Mirror | 1 | X | X | (A) SUB FOR AZ47909 | ||
AZ49140 | Rear View Mirror | 1 | X | X | (B) | ||
2 | AH211220 | Handrail | 1 | X | X | ||
3 | H215556 | Sealing Washer | 4 | X | X | SUB FOR APPL H136110 | |
4 | H161289 | Clamp | 2 | X | X | ||
5 | 37M7131 | Screw | 8 | X | X | M6 X 20 | |
6 | 14M7296 | Flange Nut | 15 | X | X | M10 | |
7 | 19M7784 | Screw | 9 | X | X | M10 X 20 | |
8 | AH206381 | Platform | 1 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
9 | 03M7190 | Bolt | 4 | X | X | M10 X 20 | |
10 | 19M7786 | Screw | 3 | X | X | M10 X 30 | |
11 | AH130594 | Step | 1 | X | X | ||
12 | H173616 | Plate | 1 | X | X | ||
13 | AH122099 | Bumper | 1 | X | X | ||
14 | 37M7046 | Screw | 2 | X | X |

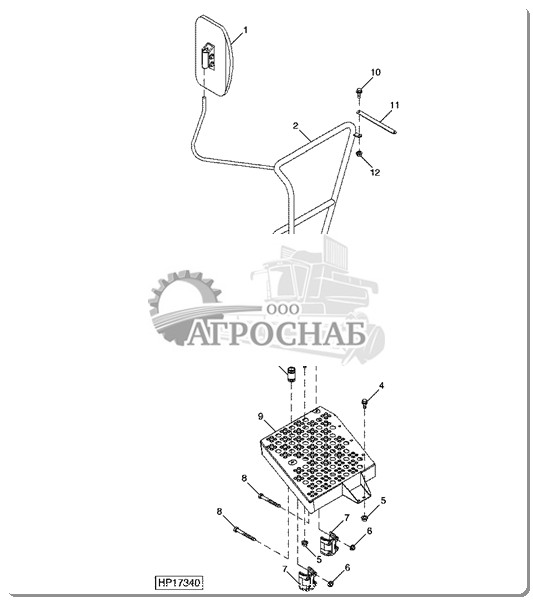

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | AH142404 | Rear View Mirror | 1 | X | X | ||
AZ100258 | Rear View Mirror | 1 | X | X | (C) SUB FOR AZ47909) | ||
AZ49140 | Rear View Mirror | 1 | X | X | (D) | ||
2 | AH209378 | Handrail | 1 | X | X | (A) | |
AH227143 | Handrail | 1 | X | X | (B) SUB FOR AH219620 | ||
3 | H167680 | Isolator | 2 | X | X | ||
4 | 19M7784 | Screw | 6 | X | X | M10 X 20 | |
5 | 14M7296 | Flange Nut | 6 | X | X | M10 | |
6 | 14M7303 | Flange Nut | 8 | X | X | M6 | |
7 | H167681 | Clamp | 2 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
8 | 19M8483 | Screw | 8 | X | X | M6 X 65 SUB FOR AH206382 | |
9 | AXE15476 | Platform | 1 | X | X | ||
10 | 19M7866 | Screw | 1 | X | X | M8 X 20 | |
11 | H228247 | Strap | 1 | X | X | ||
12 | H137328 | Lock Nut | 1 | X | X |

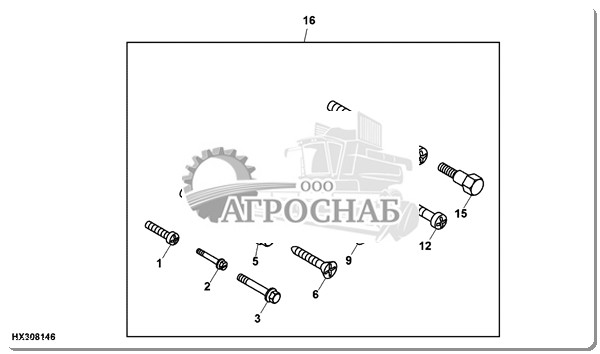

key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
---|---|---|---|---|---|---|---|
1 | H110842 | Screw | 10 | X | X | ||
2 | H111364 | Screw | 10 | X | X | ||
3 | H111705 | Screw | 10 | X | X | ||
4 | H114038 | Screw | 5 | X | X | ||
5 | H165689 | Screw | 10 | X | X | ||
6 | R126355 | Screw | 10 | X | X | ||
7 | H128859 | Screw | 5 | X | X | ||
8 | H165693 | Screw | 5 | X | X | ||
9 | H165690 | Screw | 10 | X | X | ||
10 | H163401 | Screw | 5 | X | X | ||
key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
11 | H130298 | Screw | 3 | X | X | ||
12 | H165691 | Screw | 10 | X | X | ||
13 | H140627 | Screw | 10 | X | X | ||
14 | H131424 | Bolt | 3 | X | X | ||
15 | H132899 | Screw | 5 | X | X | ||
16 | AH151362 | Hardware Kit | 1 | X | X | (A) |
key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
---|---|---|---|---|---|---|
1 | 19M7866 | Screw | 1 | M8 X 20 | ||
2 | T162675 | Clamp | 1 | |||
3 | H137328 | Lock Nut | 1 | M8 | ||
4 | H228314 | Strap | 1 | |||
5 | AH227047 | Stabilizer Kit | 1 |
